#QD1 Super Apm Flight Controller Integrated Mini OSD/3DR

Rp2.430.000  Rp2.120.000
Save: 13% off

2015 Newest World First Super Apm Flight Controller Integrated Mini OSD/3DR/
Current Voltage Sensor VS DJI NAZA APM

Apm Flight Controlle Details:
Super APM Special Advantages
1. Suprer APM with Aluminum alloy shell has several advantages:
a. When the flight control work,it can absorb the working heat,then prevents
the hardware aging.
b. It shields external interference signal,then makes the flight control more
c. It is not easy to destroy when the drone crashs,because the hardness of
Aluminum is better than plastic
2. Super APM is integrated with MINI OSD, 3DR data transmission,current
voltage sensor function,
Extends Two Red APM unlock’s LED panels that has three lights,Two Blue GPS
Search star LED panels that has three lights.

Hardware of the Apm Flight Controlle:
1. Chip: 8bit ATMEGA2560
2. Bulid in 3-axis gyro, accelerometer, 6 DoF Accelerometer/Gyro MPU-6000
3. Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement
4. Onboard 16 MegaByte AT45DB161D Dataflash chip for automatic datalogging
5. Eight Channels PWM Control Input
6. Eleven Analog sensors Input
7. Eleven Channels PWM Output(Egiht Channels ESC Motors,Three Channels Gimbal
8. Optional off-board GPS, uBlox NEO-6M,7M,LEA-6H,M8N module with Compass.
9. shielding onboard PPM decoding function, external PPM decoding board or
external PPM receiver
10. 12C external compass port
11. Onboard OSD Function that uav ‘s attitude, mode, speed, voltage. Current.
Height. The gas quantity. Star search. Location and other
important data overlay the on the image,then pass back the monitor by 5.8G
image transmission
12. Onboard current voltage sensor
13. Onbaord 3DR data transmission module
14. (Optional) airspeed sensors
15. (Optional) ultrasonic ranging sensor
16. (optional) optical flow point sensors
17. (extensible) other UART, I2C, SPI equipment

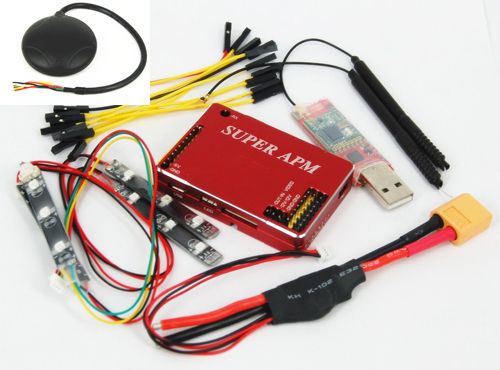

Product list of Apm Flight Controlle:
1. 1 * SUPER APM with Aluminum shell
2. 1 * 915MHZ Ground receiving data transmission (including the antenna)
3. 1 * Air module data transmission’s antenna(onboard Air 3dr data
4. 1 * Battery power wire(optional XT60/TX )
5. 4 * LED Panels,Two Red Panels for APM’s unlock LEDs,Two Blue Panels for GPS
Search star LEDs
6. Receiver with line:Eight yellow Dupont Lines
One Red Dupont Line
One Black Dupont Line

 photo QD1FR_zpsbhwncdgt.jpg

 photo QD1ER_zpsm6oezug7.jpg

 photo QD1DR_zpsnmmpp5iu.jpg
