#R002 RadioLink OSD Telemetry Module

Rp270.000







 photo R002-1-MIRP_zpsfuxtffhk.jpg
OSD telemetry sensor: PRM-02
OSD Telemetry module transmits the data from the flight controller and shows the
data of SPEED, RISE, THRO, VOLT, LATI, LONG, ALT, GPS, RSSI, MODE, YAW,
ROLL, PITC, DIST in the display screen of AT9 or AT10.

1.Introduction:
(1). Please upgrade your AT9 firmware to V1.2.6(OSD).(1)AT10 firmware to
V1.0.6(OSD).
(2). So far, this OSD telemetry module is compatible with PIXHAWK and APM.
(3). OSD telemetry module can work with both R9D and R10D.

Specification
(1).Size: L×W×H=38×14×11mm
(2).Weight: 3.4grams

Connection Connect one end of the OSD to R9D or R10D, and the other end to APM.

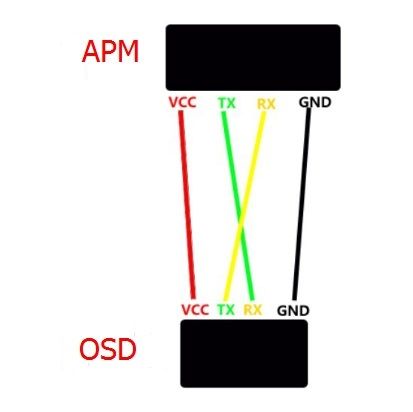

Connect to APM:
 photo prm3_zpstrvsncsd.jpg

 photo prm4_zpsqmve2l9a.jpg

Connection Connect one end of the OSD to R9D or R10D, and the other end to PIX.

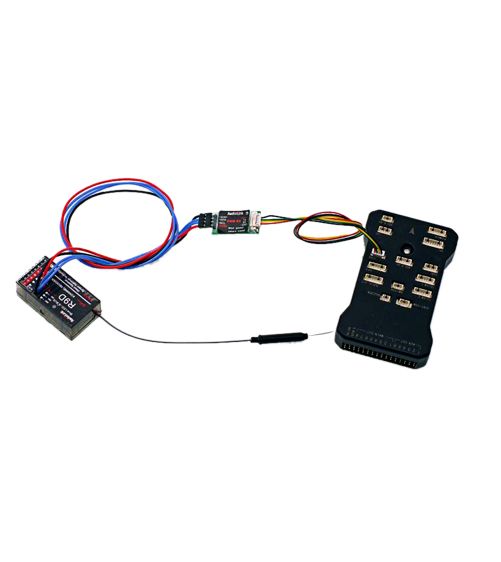

Connect to PIXHAWK:
 photo prm21_zpslkempckd.jpg

 photo prm1_zpseodurq88.jpg

 photo prm7_zpsowwixdvy.jpg

Displaying effect (AT9)
 photo prm5_zpsbwhm1rjk.jpg

Displaying effect (AT10)
 photo prm6_zpsagxmjtde.jpg

Attention :
1.No output if USB connect flight-controller and computer.
2.No VOLT information if use UBEC, have to offer electricity for flight-
controller by volt ammeter.
3.Have to short-circuit the MUX-TXO/OSD of APM when connect PRM-02(OSD) to APM.
